Rust Stop RSI

Rust Stop RSI
Rust Stop RSI
Product Code : RSI-003
Brand Name : RUST STOP INDIA
Product Description

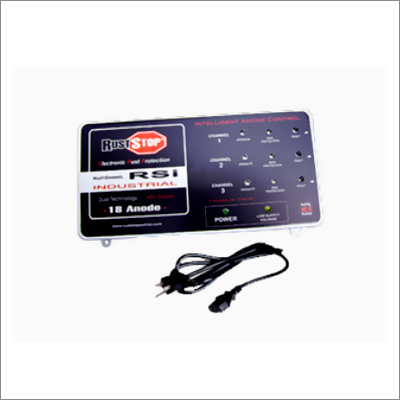

Based in Mumbai, we are reckoned as an eminent exporter and supplier of corrosion protection materials like Industrial ERP. This equipment is used to safeguard cranes, marine equipment, towers, piping system and tanks against rust. The operating system of this electrical machine is based on the principal of current and sacrificial anode technology. Featured with ABS made enclosure, overload protection switch, copper made conductor and voltage spike protection system, this Industrial ERP can protect up to 200m2 of steel per equipment.

Technical Specification :

RSi - Industrial System (Six Channel)

Input Voltage

220/240 Volt AC

Current Drawn under DRY Conditions

< 0.060A

Current Drawn under WET Conditions

< 0.350A

Current Drawn under Low Supply Voltage

< 0.006A

Ground

(-) Negative (GREEN)

Housing

High Grade ABS Plastic

Weight Complete

Approx. 1,450 Kilograms

Number of Channels

6

Max Anodes per Channel

3 in Series

Number of Anodes

18

Output Voltage

> +45 Volts

Anode Wire

Not supplied*

Approximate Coverage

200m2

ANODE WIRE SPECIFICATIONS

Due to the weight of wiring and variation in what is required per installation, there is no anode wire charged for or supplied with the system. Normally 100m is more than sufficient, however more may be needed for larger structures. As a minimum, the following wire specifications should be used but higher quality wire can be used in very extreme conditions (e.g. silcone insulation, stainless steel conductor core).

Minimum Wire Specifications:

  • Multi Strand Panel Flex wire
  • Size: 0.75mm square
  • Voltage Rating 500V
  • Nominal Current Rating 3A
  • Strand No x Diameter: 14 x 0.21
  • Temp. range - 10 to 80 degrees C
  • Insulation: Flexible grade PVC
  • Flexibility class 4&5
  • Conductor type: High Conductivity annealed copper
